RAL 9006, White aluminum
| Article number | 301 132025 |
|---|---|
| Dimensions (W×D) | 1600 × 600 mm |
| Stroke range | 700–1200 mm |
| Dynamic load | 100 kg |
| IP Protection class | 20 |
| Cable length | 2,5 m |
| Charging power | 18 W |
| USB-C charging | yes |
| USB-A charging | yes |
| Guarantee | 5 years |
| System | N |
| Material | Steel |
| Größte Plattengröße | 1000x1800 mm |
| Kleinste Plattengröße | 600x1100 mm |

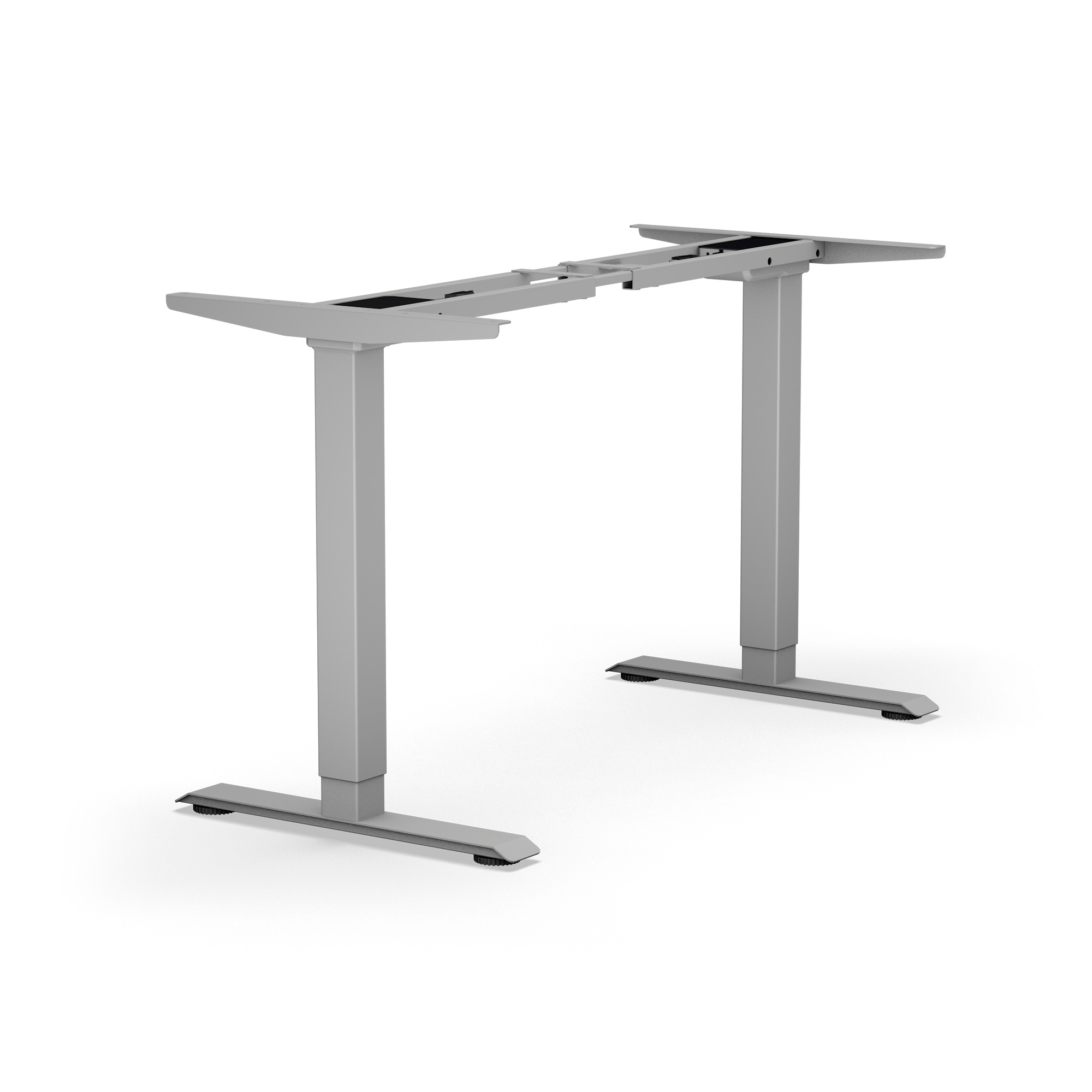

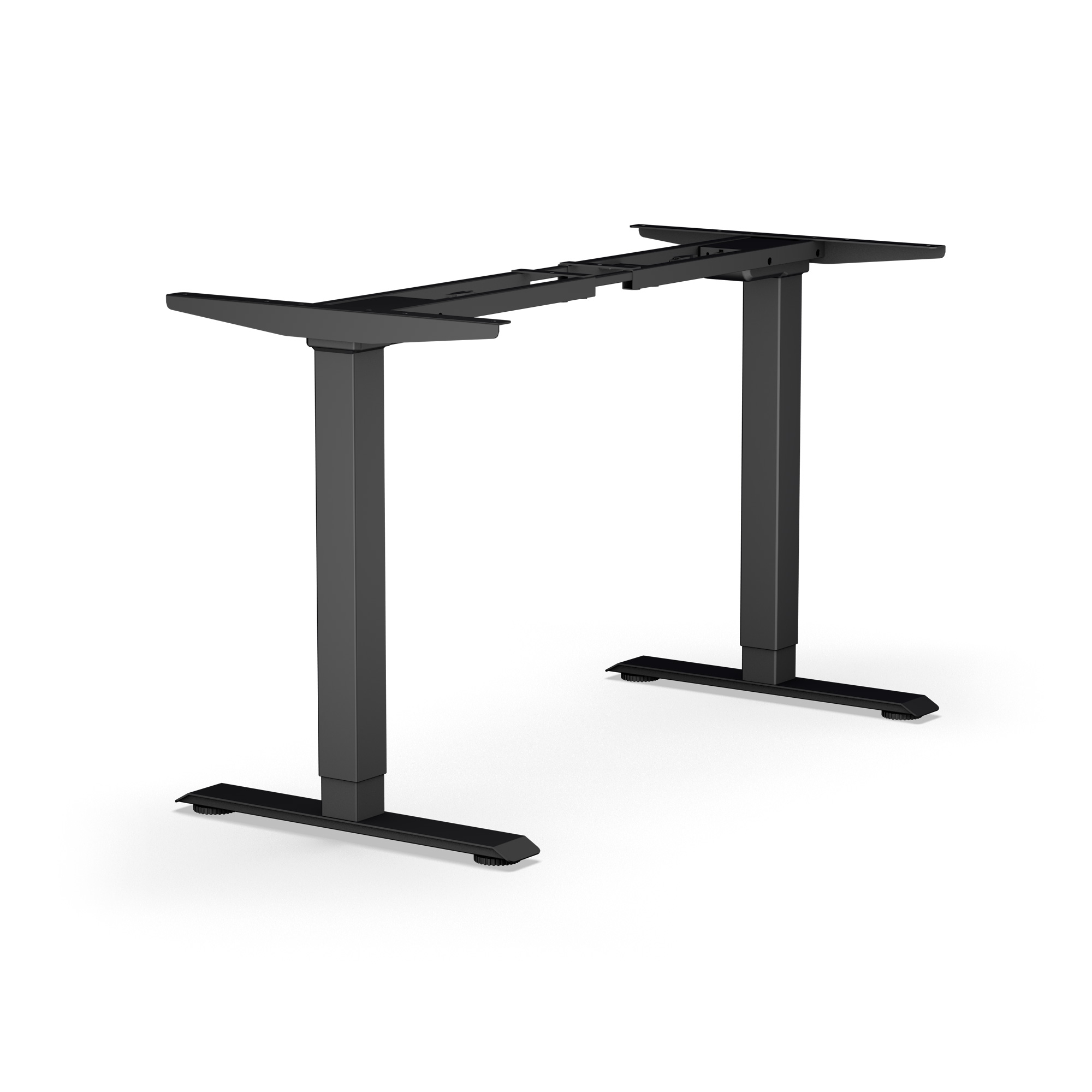

The electrically height-adjustable table frame E-SMART 2M2S features 2 motors and 2-stage lifting columns (70x70 mm cross-section) to provide a stable and powerful solution for flexible workspace design. The lifting range from 700 to 1200 mm allows ergonomic height adjustment for maximum comfort. The double crossbar ensures exceptional stability even with larger tabletops up to 1000 x1800 mm.

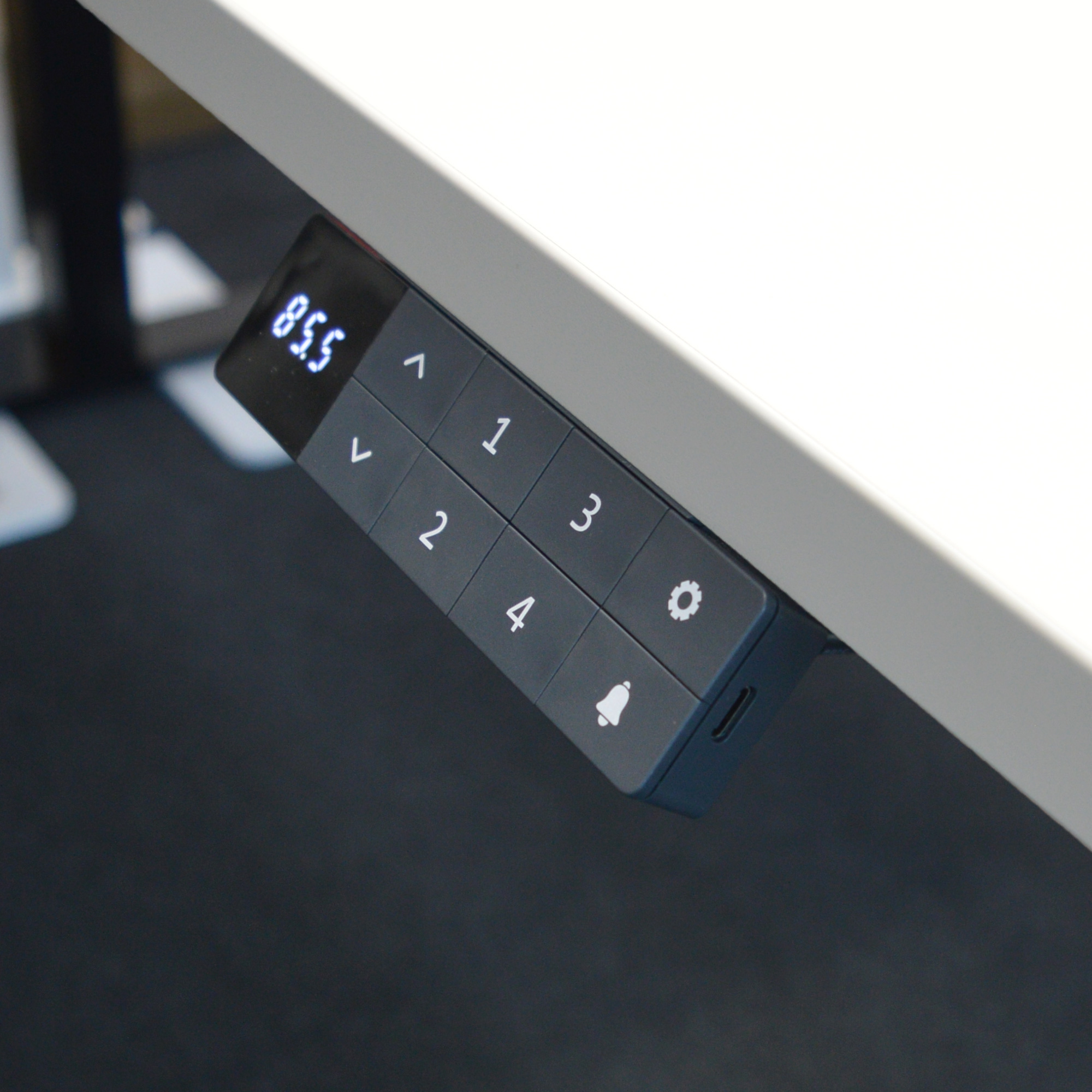

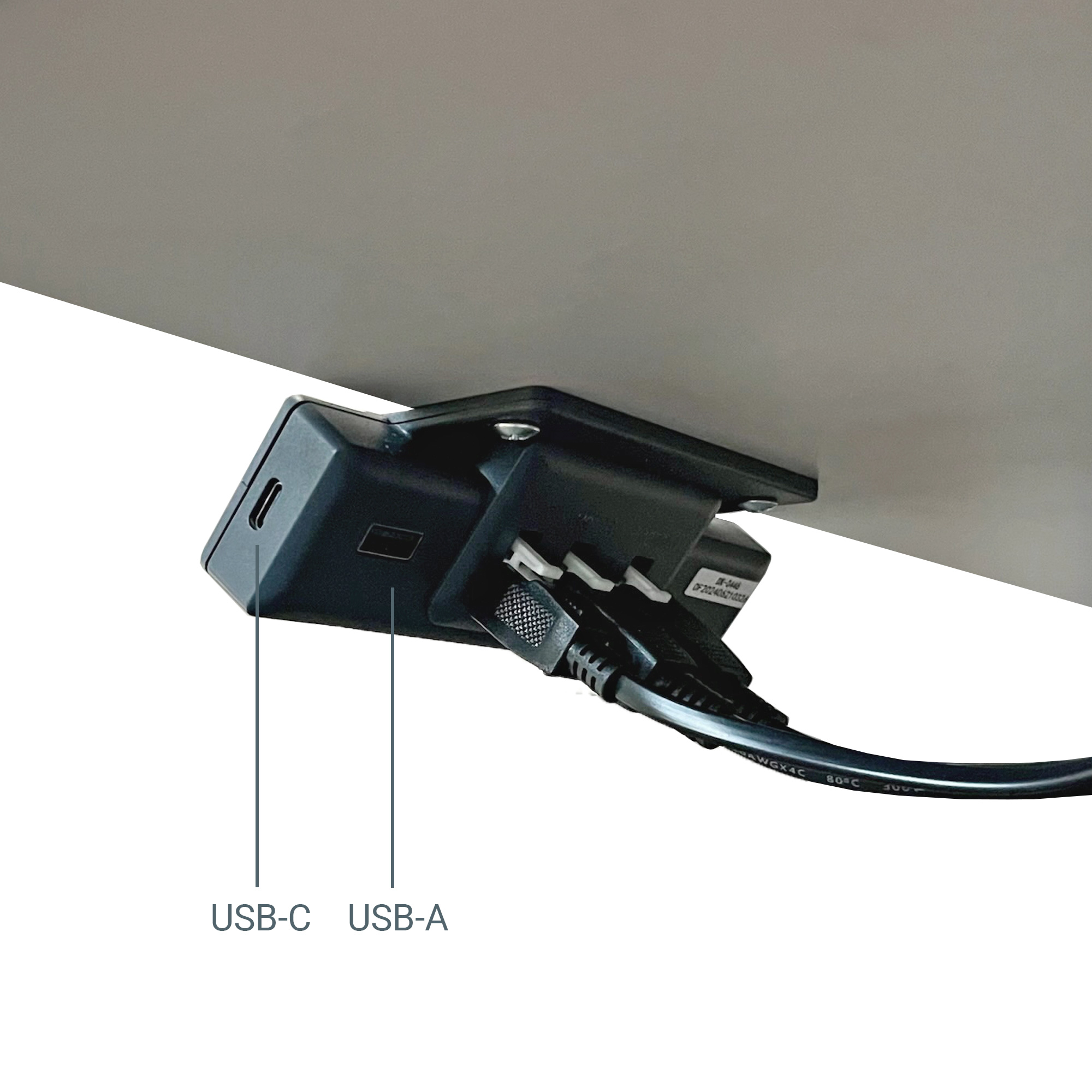

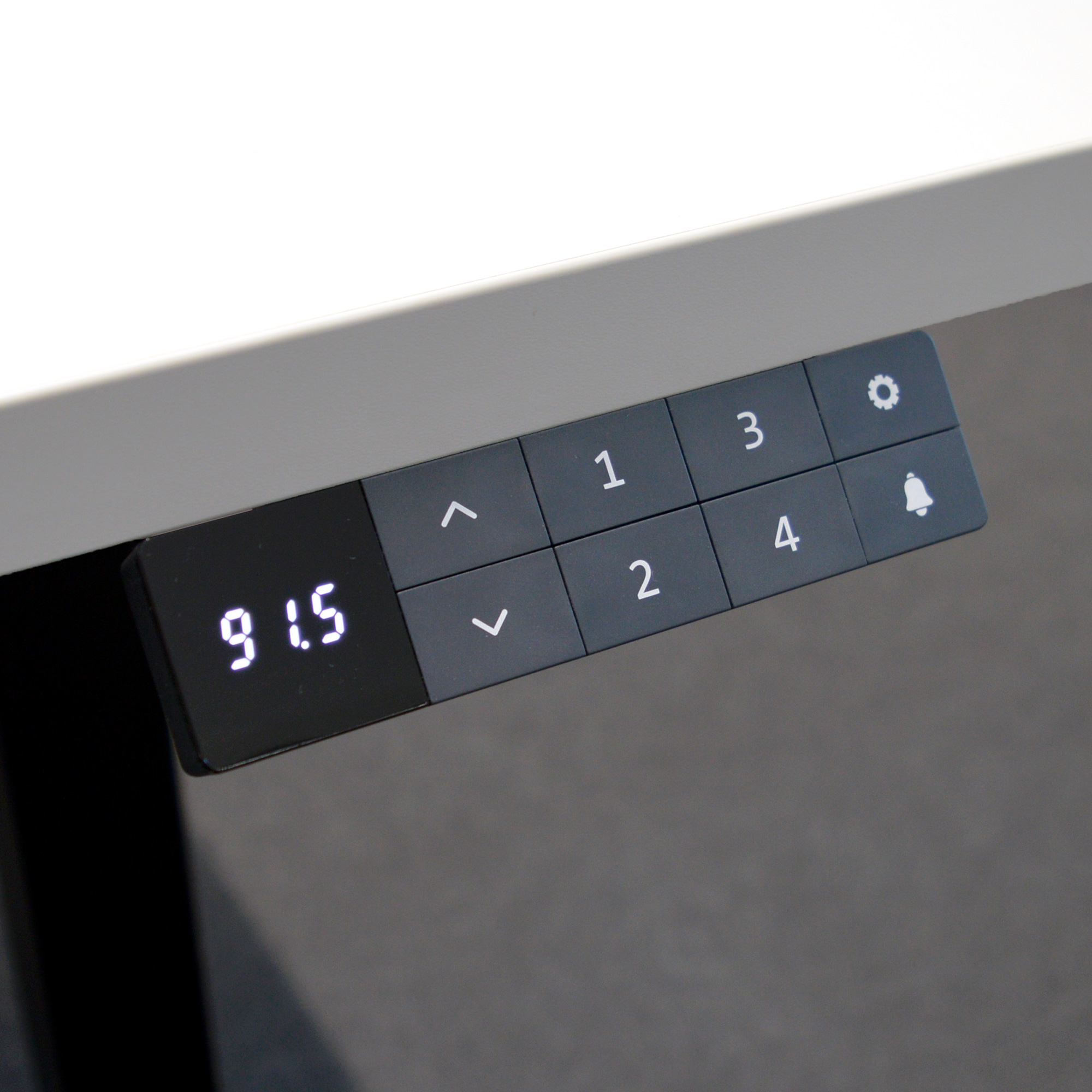

The frame includes a modern control panel with 4 memory positions and integrated USB-A and USB-C charging ports delivering 18 W power. Safety features include an integrated 8-stage anti-collision system, child lock, and a reminder function for position changes. The maximum load capacity is 100 kg, with a lifting speed of 25 mm/s and quiet operation below 50 dB.

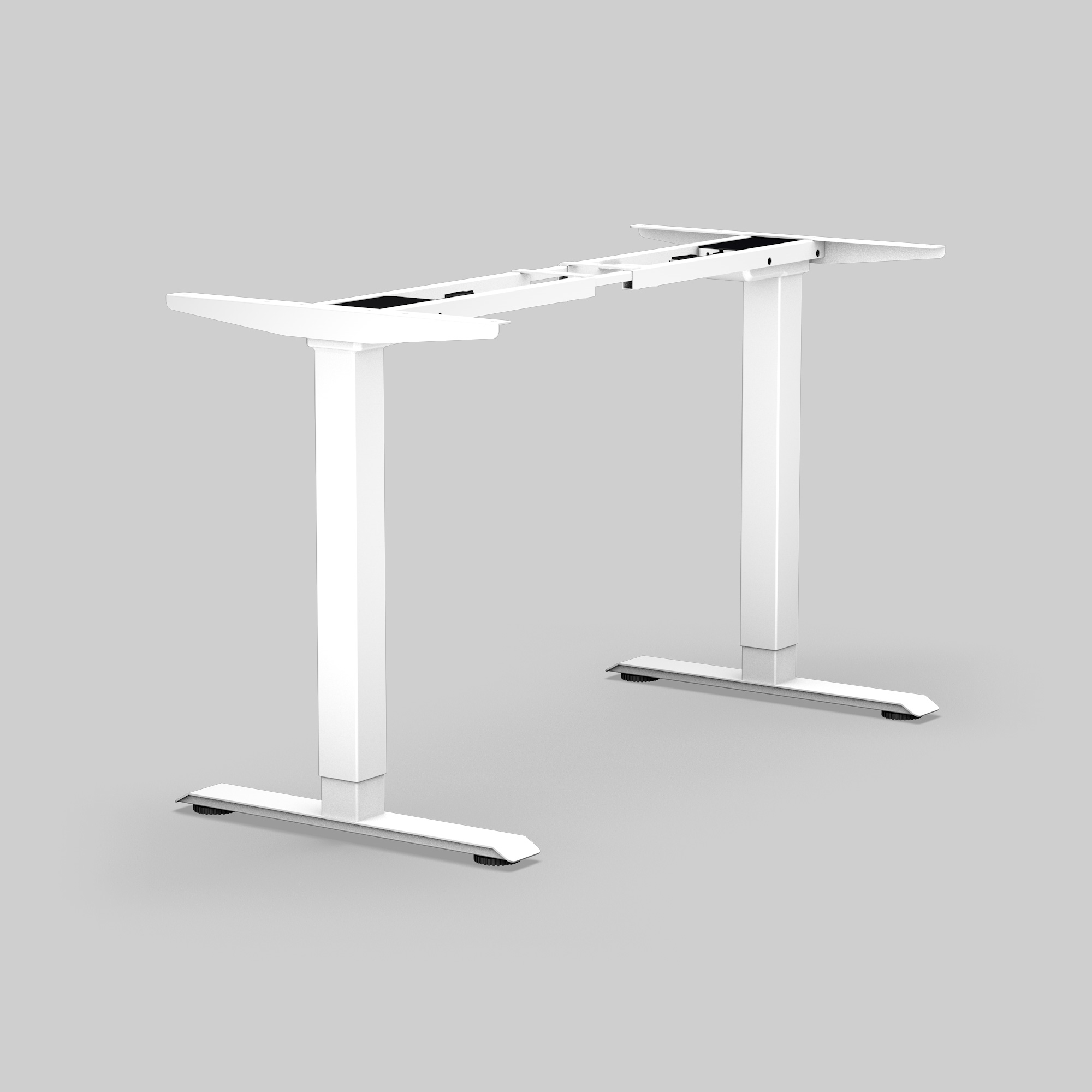

Available in Traffic Black (RAL 9017), White Aluminium (RAL 9006), and Pure White (RAL 9010), the E-SMART 2M2S table frame comes with a 5-year warranty. This combination of performance, stability, and safety makes the frame ideal for professional office workstations with high ergonomic and technical demands..
